UNITILE (INDIA) – LOW FLANGE WIDTH (LFW)

Category:

Description

Steel Cementitious Panel – Low Flange Width (LFW)

Brand: Unitile
Origin: India

Low Flange Width (LFW) from Unitile is a premium raised floor solution, specifically designed to add durability, stability and safety to modern buildings such as open offices, data centers, control rooms, casinos, educational and co-working spaces.

Features

    • Low edge design: Reduces the risk of damage during use thanks to the low edge design, helping to increase the durability and stability of the floor system.
    • Increased load-bearing capacity: The brace system is designed to be in close contact, without gaps, helping to increase stiffness and reduce cooling gas leakage in the electrical system below.
    • Fireproof and non-flammable: The product meets the fire-spreading resistance certifications of Class 0 and Class 1 according to BS 476 part 6 & 7 / ASTM E84:1998, and is non-flammable according to ASTM E136.
    • Anti-static: Certified anti-static according to ASTM F150 / NFPA99 / ANSI S 7.1 / CEI 61340, with anti-static ability of HPL surface: 1 x 10^9 – 2 x 10^10 Ohms and PVC: 2.5 x 10^4 – 1 x 10^6 Ohms.

Specification

    • Dimension: 600 x 600 mm or 600 x 800 mm
    • Thickness: 30 mm hoặc 35 mm

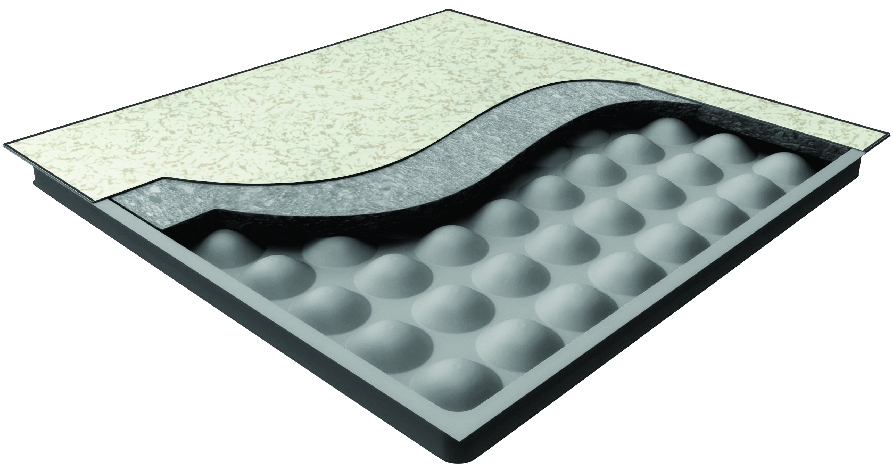

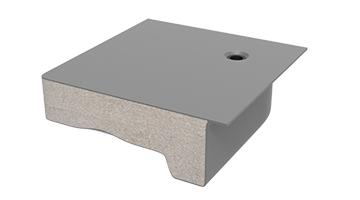

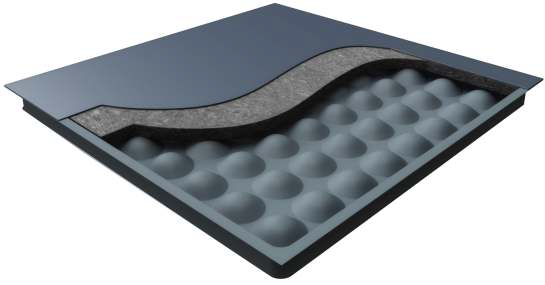

    • Structure:

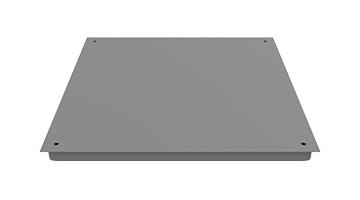

      1. Top: Flat Steel
      2. Core:  Lightweight proprietary cementitious mixture

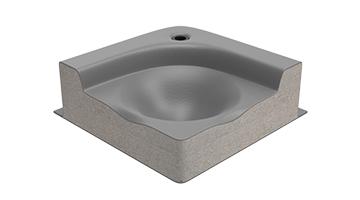

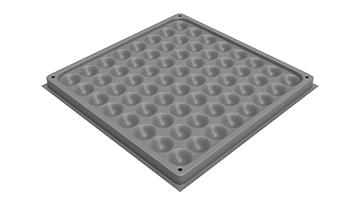

      3. Bottom:  Flat steel uniquely designed to form hemispherical reinforcing pockets
    • Finished Surface: Carpet / HPL / PVC

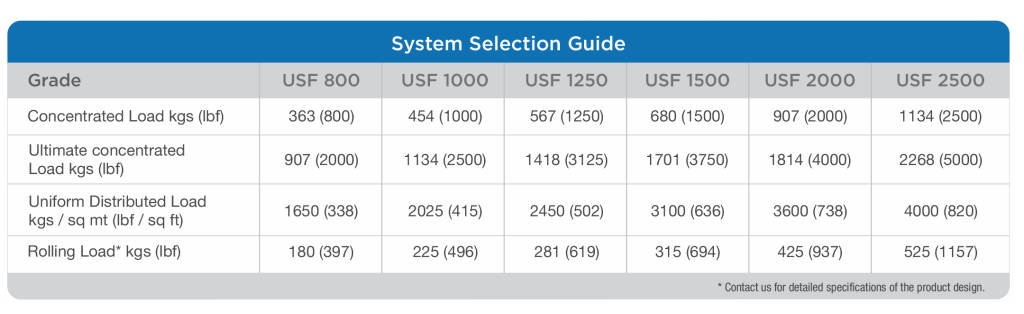

    • Types of Load:

Understructure Support System

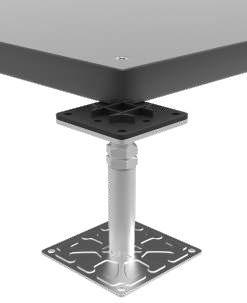

    • Corner Lock:  Each floor panel is mechanically secured to the pedestal head at all four corners ensuring maximum rigidity and lateral stability. Access to the sub-floor is very simply achieved by releasing the fasteners and lifting the panel. Finished Floor Height: 65-2000mm

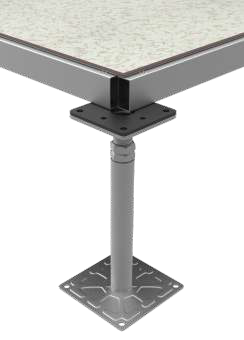

    • Edge Support Rigid Grid (ESRG):  Edge support understructure provides maximum floor stability. It reduces all lateral movements and also ensures integrity of the floor on removal of panels for access to services in the sub-floor. Stringers are mechanically fastened to the pedestal head and panels are then placed on the grid formed. This system is ideal for high finished floor heights. Finished Floor Height: 65-2000mm

Standard & Certificates

    • Environmental Quality: ISO 9001:2015, ISO 14001:2015, OHSMS ISO 45001:2018

    • Fire Resistance: BS 476 part 6 & 7 / ASTM E84:1998, ASTM E136

    • Anti-Static: ASTM F150 / NFPA99 / ANSI S 7.1 / CEI 61340

    • Green Label: SGBP – Singapore Green Building Product

Application

The product is suitable for spaces with high technical and safety requirements such as:

    • Open office
    • Data center
    • Control room
    • Casino
    • Educational space
    • Co-working space
